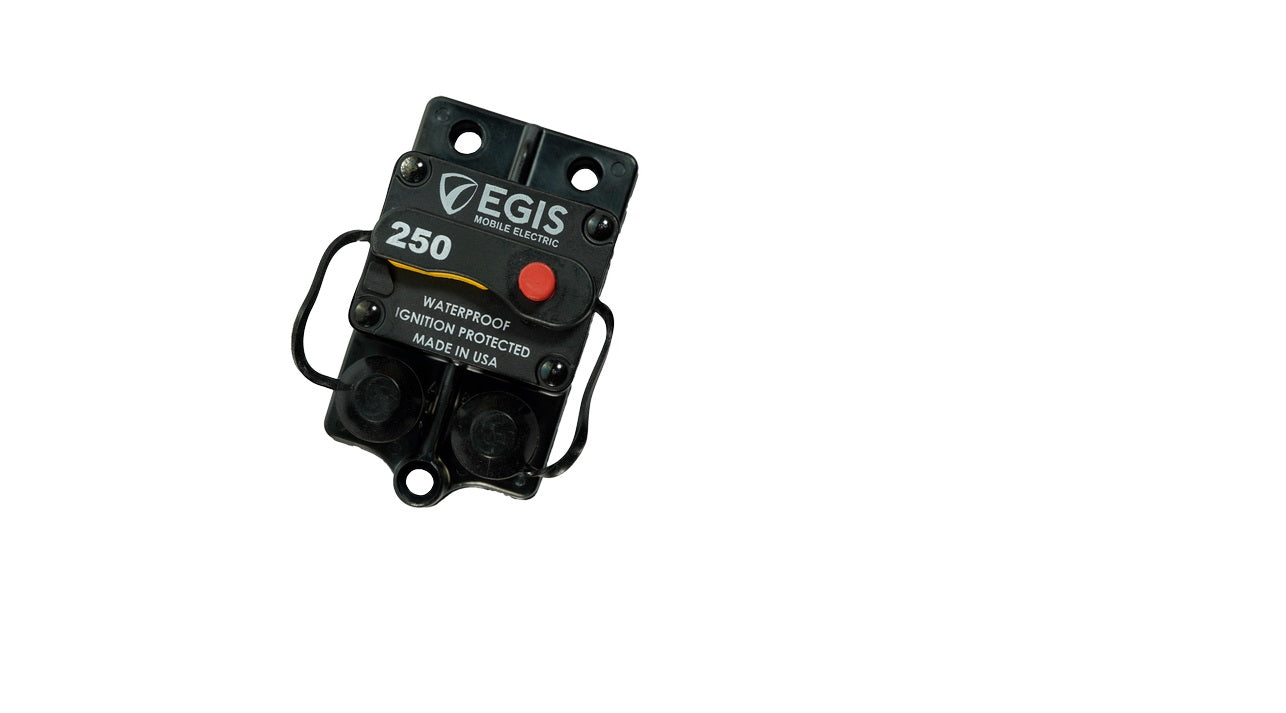

EGIS 285-Series 250 Amp Circuit Breaker Surface Mount
EGIS 285-Series 250 Amp Circuit Breaker Surface Mount
Regular price
$62.30 USD
Regular price
Sale price
$62.30 USD
EGIS 285-Series 250 Amp Circuit Breaker Surface Mount
Model: 4709-250- ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations.
- Integrated Terminal Insulators Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.
- Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications.
- Made in the USA of high quality components.
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
Specifications| CONTINUOUS CURRENT (AMPS) | 250 |
| MAX VOLTAGE (VDC) | 30 |
| CYCLING ENDURANCE | 6,000 |
| INTERRUPT CURRENT @ 16 VDC (AMPS) | 5,000 |
| INTERRUPT CURRENT @ 28 VDC (AMPS) | 3,000 |
| INGRESS PROTECTION RATING | IP67 |
