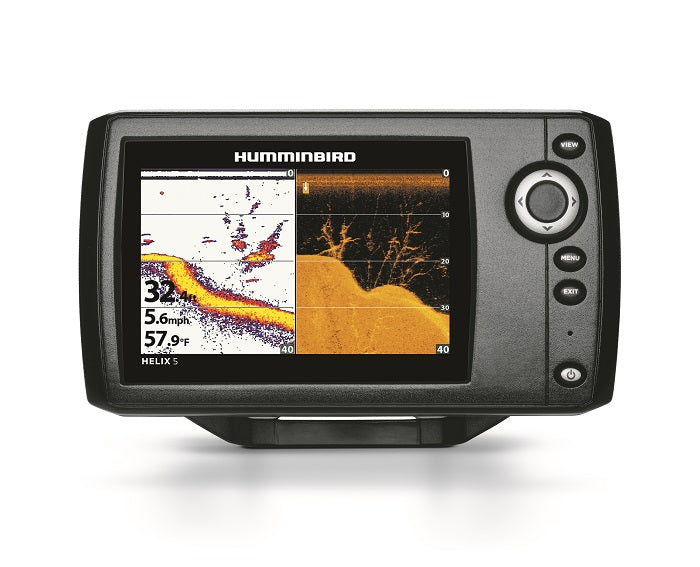

Humminbird HELIX5 DI 5in WVGA Color Fishfinder G2

Humminbird HELIX 5 DI G2 Fishfinder

Model: 410200-1
UPC: 082324049019

• Down Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.
• SwitchFire Sonar -- Take command of how your sonar returns appear with our Clear and Max Modes.
• Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
• Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section of the site.

The HELIX 5 DI G2 with their new user interface and operating system, features a brilliant 800H x 480V, 5" 256 color display with backlight. Down Imaging and DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 DI fishfinder system.

Specifications

Display size	5 in
Display resolution	800 x 480
Display type	Color TFT
Display colors grayscale	16-bit
Standard sonar	Down Imaging/DualBeam PLUS
Standard sonar coverage	16°, 28°, 45° & 75° @ -10db
Standard sonar frequency	455/800/200/455 kHz
target separation	2.5 in
Power output RMS	500 watts
power output peak to Peak	4000 watts
Depth capability	350 ft (DI) & 600 ft (2D)
Temperature	Built-in transducer
Speed	Optional
Backlight	LED
PC Connect	Optional
Switchfire sonar	Yes
Split screen zoom	Yes
Split Screen Bottom Lock:	Yes
Large digit view	Yes
Card reader	No
Input Voltage	10.8-20 VDC
Input Draw	650mA
Dimensions	Gimbal Mount:7.55"W x 4.64"H x 3.3"D Indash Mount:7.55"W x 4.28"D x 1.13"D

What's in the Box:

• Helix 5 DI G2
• Bracket
• Powercord
• XNT 9 DI T
• Documentation
