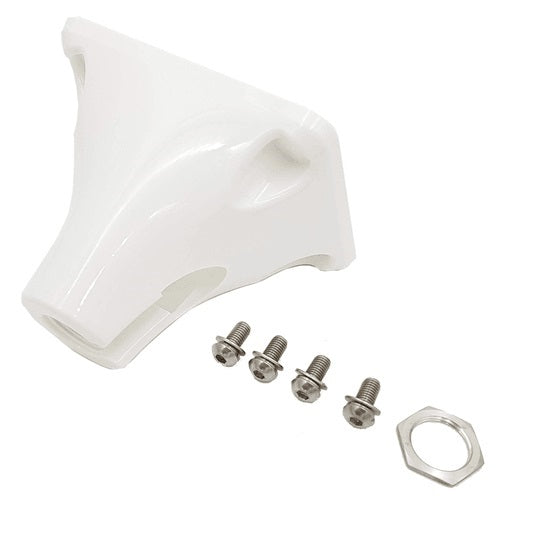

Simrad Pole Mount Bracket For HS75

Overview

Simrad Pole Mount Bracket For HS75 by Simrad. MPN/Model: 000-15686-001. Condition: New unit. Category: Autopilot - Accessories.

Key features

• Screw the jam nut onto the 1-inch pole, then screw the pole mount bracket onto the pole. Do not tighten the pole mount to more than 5.4 Nm (4 lbs-ft).
• Feed the cable either through the hollow pole or through the opening in the pole mount bracket.
• Connect the NMEA 2000 drop cable to the HS75, then secure the pole mount bracket to the HS75 using the supplied mounting hardware. Tighten to a torque of 11 - 13 Nm (8 - 10 lbs-ft). The maximum thread
• Verify the orientation of the HS75, then tighten the jam nut to the bottom of the pole mount

Notes

Please verify compatibility with your existing network, transducer, and mounting requirements before purchase.
