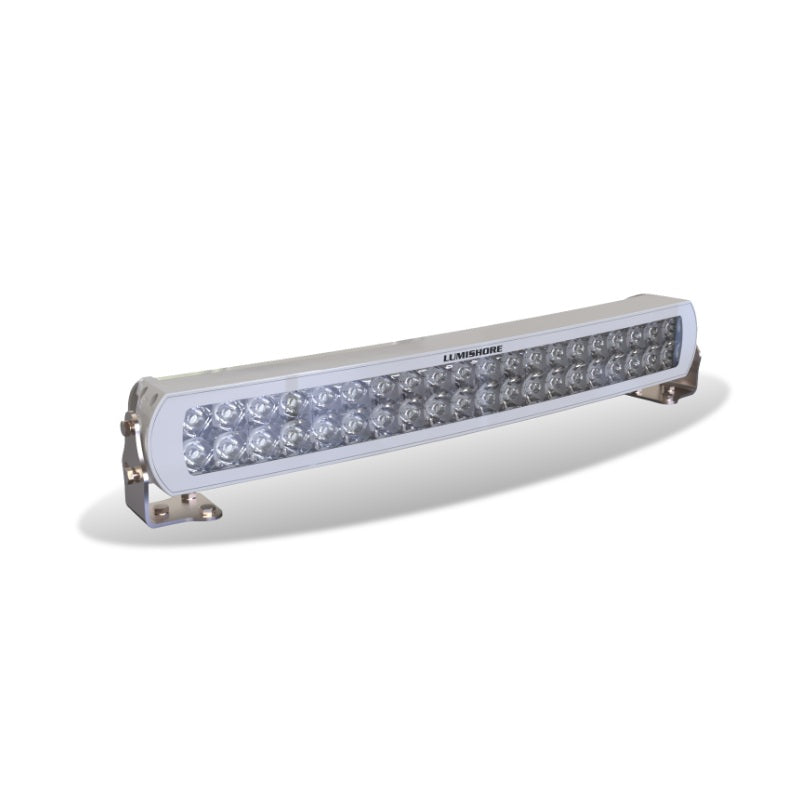

Lumishore 20in Curved Lightbar White LED, White Housing 12/24vDC

Lumishore 20in Curved Lightbar White LED, White Housing 12/24vDC

Model: 010-04462-00

Designed to offer a high-intensity light source, Lumishore Light Bars cover a wide spread area.

The 20 feet' (60cm) Light Bar generates a powerful 15,000 fixture lumens of crisp, white light to illuminate the hardest to see places.

Designed to withstand extreme marine environments, completely water tight (IP68 compliant) and constructed with marine-grade powder coated aluminium. These sleek, low profile lights enhance your boat's fit-out, even when not in use.

Suitable for T-Tops, helm roofs, fishing towers and bow platforms.

Controllable via an on/off switch, ECLIPSE Command Center or EOS-LUX Command Center.

Specifications
Available colors

White (5500 K)
Lumens	33,750
Fixture Lumens	15,000
Number & Type Of LED	40 x 10W White LED
LED Power HICOB Array	Yes
Typical LED Life	50,000+ Hours
User Control Options	On/Off Switch (Third party supplied), ECLIPSE Command Center or EOS-LUX Command Center
Electrical Installation	Simple 2 Wire Connection (3 Wires when used with EOS-LUX Command Center)
Housing Type	Powder Coated Aluminium Body with Makrolon Lens
Driver	Internal
Supply Voltage Range	10.5-31 V DC
Max Current Draw 12/24V	12.8 A/6.4 A
Beam Angle	9 deg - 20 deg Letterbox Beam (Vert - Horiz)
Water Ingress Protection Rating	IP68
Warranty	3 Years

What's in the Box:

• One (1) Light Bar - Curved 20
• Stainless steel bracket and fasteners
"
