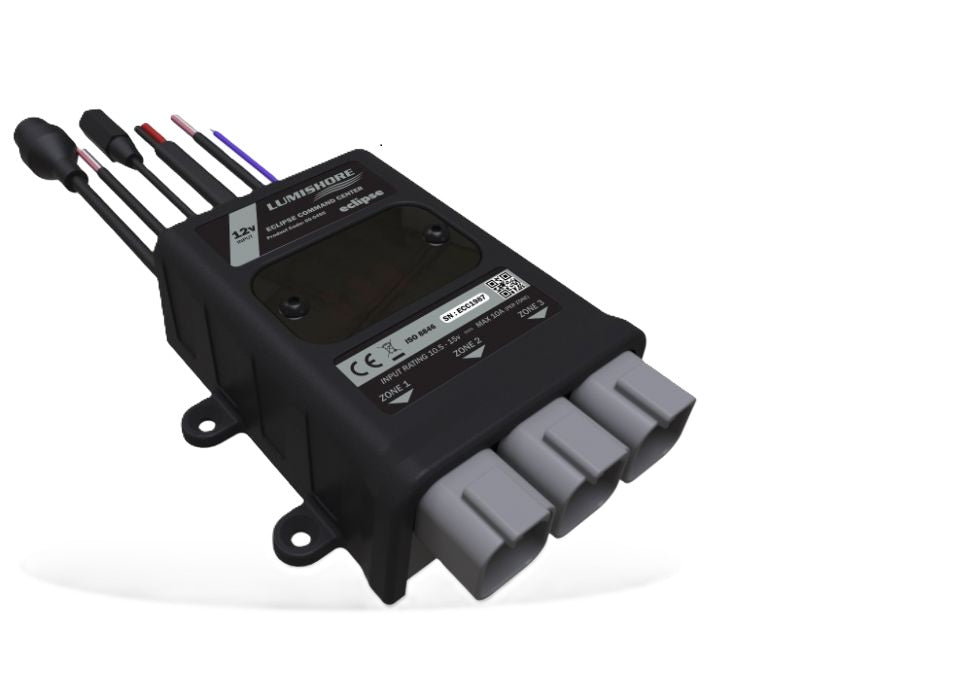

Lumishore ECLIPSE Command Center

Lumishore ECLIPSE Command Center

Model: 010-04486-00

The ECLIPSE Command Center allows seamless integration and control of your ECLIPSE lights via your MFD.

This is the World's first ultra-compact box to include built in drivers and zones for multiple types of lights. With 3 built-in configurable lighting zones that can each be set up to control your lights and expansion modules available to increase that capability to up to 6 zones.

Built-in Wi-Fi allows for direct smart device connectivity. Connect to compatible MFDs via an ethernet port. Or control your lighting zones via a simple switch.

Lumishore's intuitive interface makes accessing and managing your lighting zones simple.

Specifications
Surge Protection

Yes
Number of Zones	3 (add 3 more with expansion modules)
Max Current Per Zone	10A
Max No. Lights Per Zone	16 (total current draw must be 10A or less)
Low Voltage Protection	Yes
Reverse Polarity Protection	Yes
Ingress Protection	IP67
Simple Installation	Yes
Plug-and-Play Setup	Yes
Dimming	Yes
Color Selection	Yes
Sound-to-light	Yes
Strobe	Yes
Waranty	3 Yeaars
Input Voltage	12V DC Only (10 - 15V DC)
Input Draw	30A (3 Zones of 10A)
