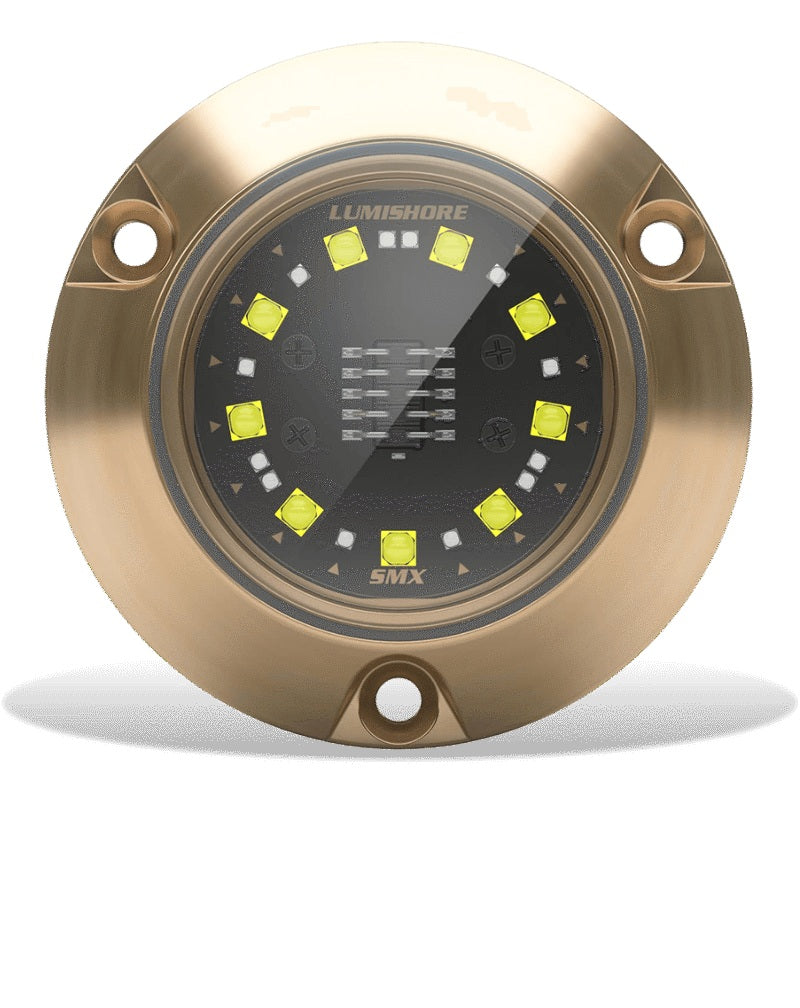

Lumishore ECLIPSE SMX24 Surface Mount Blue LED

Lumishore ECLIPSE SMX24 Surface Mount Blue LED

Model: 60-0531 / 010-04501-00

Specifically designed for smaller boats, the SMX24 - Blue offers unmatched light output and optics for a light of its compact size. Flooding the water with 3,100 fixture lumens of light in a 90 deg beam.

It's built-in driver and simple 2-wire connections make the installation of this light easier than ever.

Suitable for stepped hulls, transoms, and hull side installations.

Controlled by an ON/OFF switch or the ECLIPSE Command Center.

Specifications
COLOR

BLUE
LUMENS	6,975
VERIFIED FIXTURE LUMENS (WHITE)	3,100
NUMBER AND TYPE OF LEDS	BLUE 12X3W
LED POWER - HICOB ARRAY	YES
TYPICAL LED LIFE	50,000+ HOURS
BEAM ANGLE (DEGREES)	90 deg
DRIVER	MULTI-CHANNEL INTERNAL DRIVER
SUPPLY VOLTAGE (12 V DC ONLY)	10.5-14.5 V DC
MAX CURRENT DRAW	2.5A
HOUSING TYPE	MARINE BRONZE BODY/ GLASS LENS
USER CONTROL OPTIONS	STANDARD ON/OFF SWITCH OR ECLIPSE COMMAND CENTER
DIMMING CONTROL	YES
