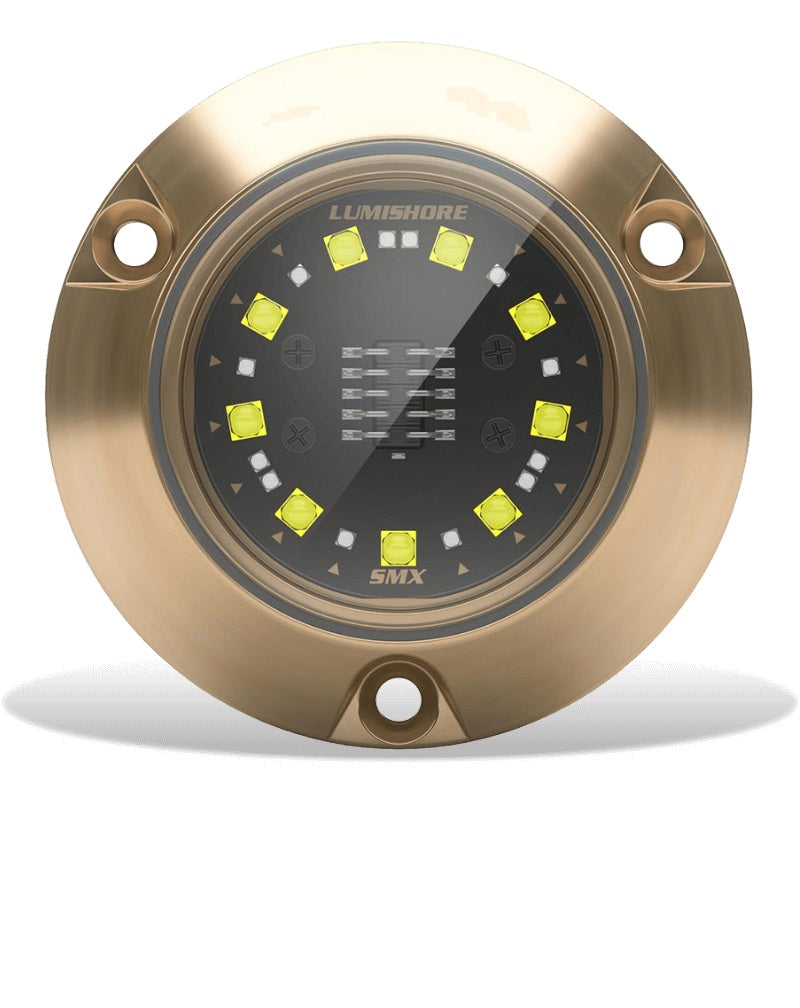

Lumishore ECLIPSE SMX24 Surface Mount Blue/White LED

Lumishore ECLIPSE SMX24 Surface Mount Blue/White LED

Model: 600-0533 / 010-04504-00

Lumishore's compact SMX24 features 3,100 fixture lumens in a wide 90 deg beam. 2-in-1 (blue and white) in a single surface mount fixture - each color runs at full power.

Integrated driver and simple 2-wire connections make the installation of this light easier than ever.

Control the SMX24 by a standard on/off switch or the ECLIPSE Command Center.

Suitable for stepped hulls, transoms, and hull side installations.

Specifications
AVAILABLE LED COLORS

DUAL COLOR (BLUE & WHITE)
LUMENS	6,975
VERIFIED FIXTURE LUMENS (WHITE)	3,100
NUMBER AND TYPE OF LED	White - 9×5W / Blue -12x3W
LED POWER - HICOB ARRAY	YES
TYPICAL LED LIFE	50,000+ HOURS
BEAM ANGLE (DEGREES)	90 deg
DRIVER	MULTI-CHANNEL INTERNAL DRIVER
SUPPLY VOLTAGE	12 V DC ONLY
MAX CURRENT DRAW	2.5A
HOUSING TYPE	MARINE BRONZE BODY/ GLASS LENS
USER CONTROL OPTIONS	STANDARD ON/OFF SWITCH OR ECLIPSE COMMAND CENTER
COLOR FADE CYCLE	YES
FIXED STROBES	YES
