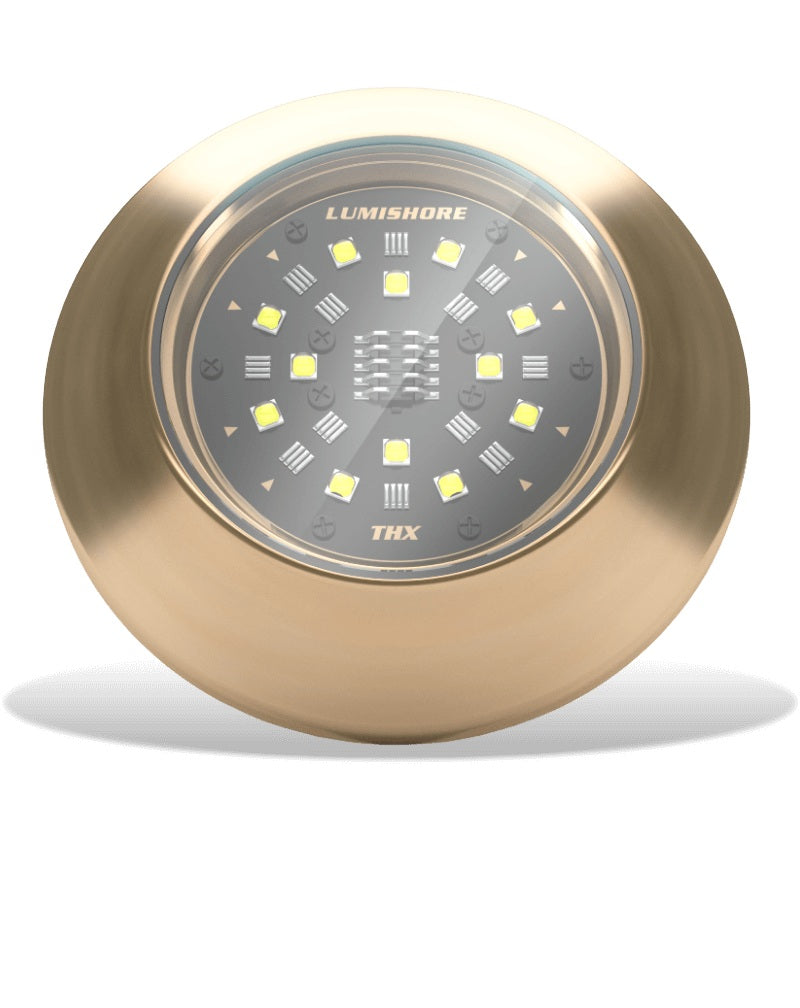

Lumishore ORA THX204 Thru-Hull Mount White LED

Lumishore ORA THX204 Thru-Hull Mount White LED

Model: THX204 / 010-04515-00

Lumishore's ultra-slim thru-hull THX204 has a small hull cut out requirement of only 5/8 in (16.5mm). White LED

The THX204 features 6,100 fixture lumens and an ultra-wide 110 degbeam angle, allowing the light to saturate deep into the water.

With a simple 2-wire installation and no external drivers, it's one of the easiest thru-hull lights to install and is suitable for transom, side hull or bottom installations.

Control the THX204 by a standard on/off switch.

Specifications
COLOR

WHITE
LUMENS	13,725
VERIFIED FIXTURE LUMENS (WHITE)	6,100
NUMBER AND TYPE OF LED	White - 12 x 10W High Power LEDs
LED POWER - HICOB ARRAY	YES
TYPICAL LED LIFE	50,000+ HOURS
BEAM ANGLE (DEGREES)	110 deg
DRIVER	MULTI-CHANNEL INTERNAL DRIVER
SUPPLY VOLTAGE	12/24 V DC
MAX CURRENT DRAW	4.9A/2.4A
HOUSING TYPE	MARINE GRADE ALUMINUM BRONZE
USER CONTROL OPTIONS	ON/OFF SWITCH
Warranty	3 Years

What's in the Box:

• One (1) ORA THX204 Light with Built-in Driver
