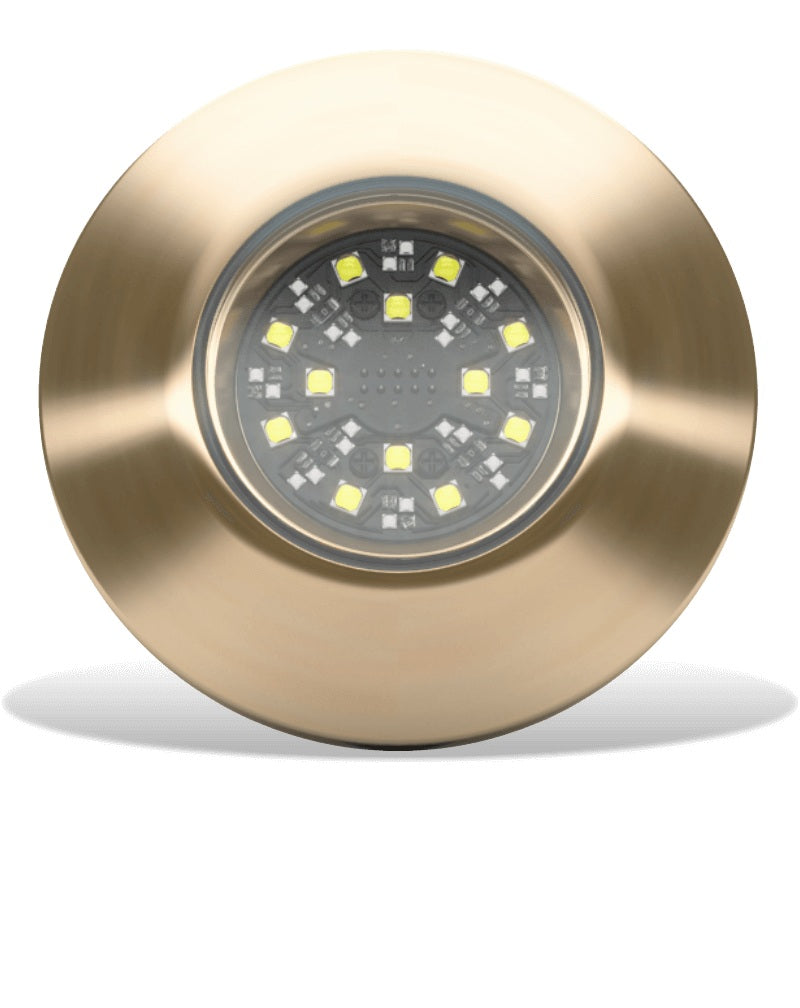

Lumishore SUPRA THX404 Thru-Hull Mount and Driver Blue/White LED

Lumishore SUPRA THX404 Thru-Hull Mount and Driver Blue/White LED

Model: THX404 / 010-04516-00

Lumishore's THX404 delivers a powerful 8,150 fixture lumens and an ultra-wide 110 deg beam angle for the ultimate halo-effect.

The dual color THX404 underwater LED light gives you independent control over two colors (blue and white). Easily switch between colors, fade colors, adjust brightness, and strobe in two speeds.

Controlled by the SUPRA I-Connect Hub & Switch, or directly from your compatible MFD and/or optional Lumishore Display, when you add the SUPRA Bridge.

THX models feature a standard 1in fitting and external driver. Flush-fit in design, with extremely low profiles, suitable for transom, side and bottom mounting.

Specifications
AVAILABLE LED COLORS

DUAL COLOR (BLUE & WHITE)
LUMENS	18,340
VERIFIED FIXTURE LUMENS (WHITE)	8,150
NUMBER AND TYPE OF LED	White - 12 x 10W, Blue - 24 x 3W
LED POWER - HICOB ARRAY	YES
TYPICAL LED LIFE	50,000+ HOURS
BEAM ANGLE (DEGREES)	110 deg
DRIVER	MULTI-CHANNEL EXTERNAL DRIVER
SUPPLY VOLTAGE	12/24 V DC
MAX CURRENT DRAW (12/24)	6.4/3.2A
HOUSING TYPE	MARINE GRADE ALUMINUM BRONZE
USER CONTROL OPTIONS	I-CONNECT HUB & SWITCH OR MFD WITH SUPRA BRIDGE
LIGHTS SYNCHRONIZED	YES
BRIGHTNESS ADJUST	YES
STROBE	YES
SYNCHRONIZED STROBE	YES
FADE MODE	YES
SYNCHRONIZED FADE MODE	YES
Warranty	3 YEARS

What's in the Box:

• One (1) SUPRA THX404 Light
• One (1) Driver
